FAA Style D (White)

White Medium Intensity

OBSTRUCTION LIGHTING

FAA Style D

(L-865)

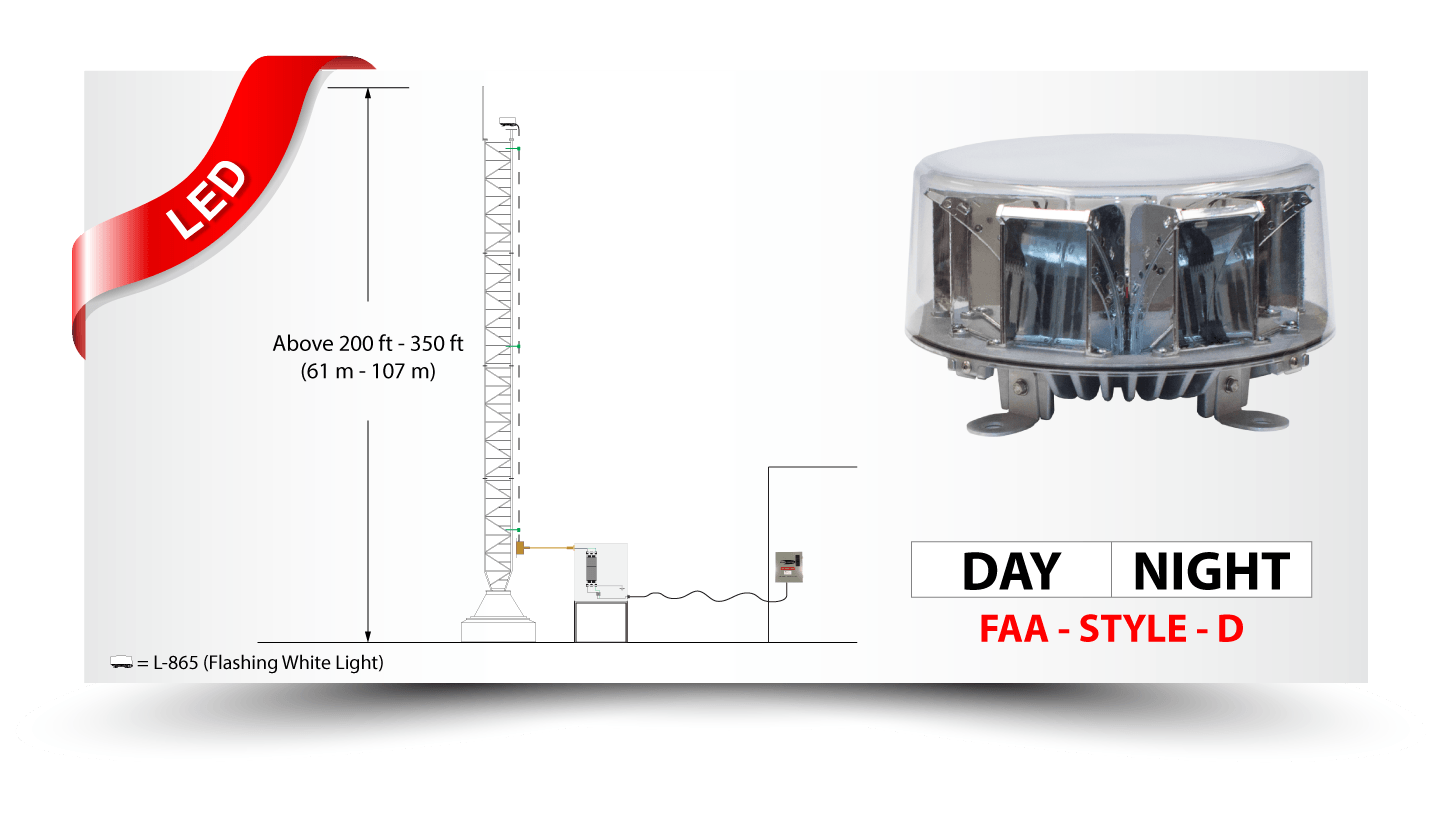

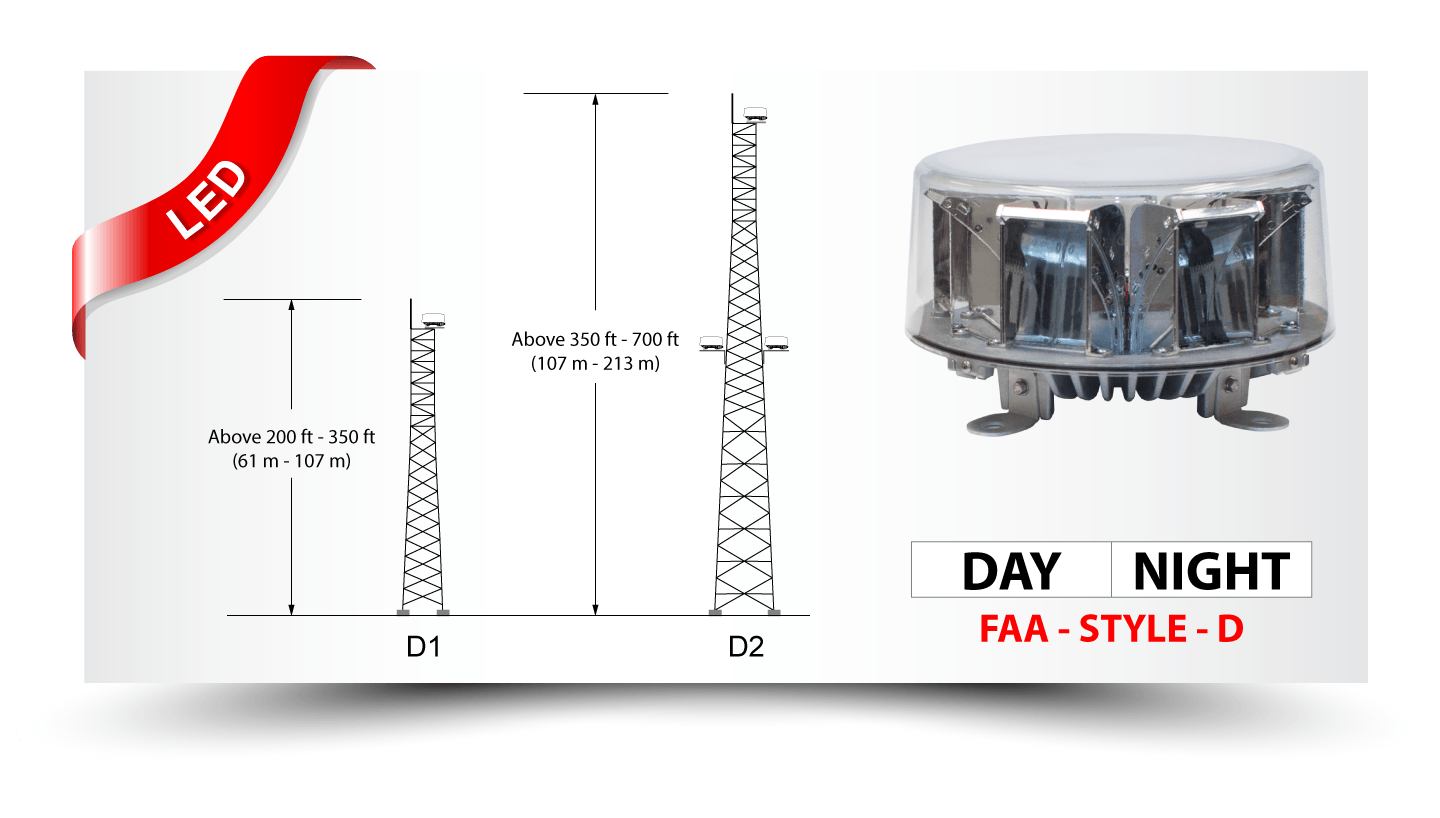

The FAA Certified Style D White Medium Intensity Obstruction Lighting System is designed to flash white during the day and white during the night. The intensity of the light varies depending on the time of day, and our system is designed to detect when it is time to change with the photocell, making it self-sufficient. This design comes with the L-865 beacon and power supply, weighing in at 15 lbs. Made for towers that reach over 200 feet AGL, the white medium intensity obstruction light keeps the power supply at the ground, so the only thing on the tower is the beacon.

Features:

  • One Cable - two-conductor wire to each beacon, marker and photocell
  • Simplest retrofit product on the market
  • High powered LEDs for MAX life
  • Controller and power supply are located at ground level
  • Includes FAA required monitoring
  • Premium monitoring option available
  • Cellular based monitoring option available
  • 5-year part warranty
  • FAA certified products
  • Optical design to reduce ground disturbance
  • Reduced energy by 90% over conventional lighting
  • GPS compatible
  • Standard 13-1/4" bolt circle installation
Data Sheet Download
SpeciFications
Light Output:
Lamp Type LED
Light Color White - Day | Red - Night
Effective Intensity 20,000 cd (day)
2,000 cd (night) +/- 25%
Electrical Value:
Power Consumption 60W Day/ 20W Night
Power Requirements 120/240 VAC 50/60Hz
Mechanical Value:
PS Weight 25 lbs.
PS Dimensions 15.8" x 17" x 8.46"
FH Weight 24 lbs.
FH Dimensions 19" Dia. x 14.25"
Others:
FAA Type L-865 | L-864
Transport Canada Type CL-865 | CL-864
Operating Temperature -40F to 131F
Warranty 5 Years
