Medium Intensity

OBSTRUCTION LIGHTING

Drake Lightings LED-based Medium Intensity Obstruction Lighting Systems are ideal for towers, stacks, wind turbines, and buildings. These obstruction lighting optics produce minimal ground scatter as well as 360° coverage for each flash head. FAA tower types: A, D & E. ETL verified to ICAO & FAA  standards.

Style A Obstruction Lighting

Red Only

L-864 | L-810 (f)

Low Intensity

Day - Off | Night - Red

Designed to meet FAA Style A obstruction lighting requirements per Chapter 5 of the AC 70/7460-1L Advisory Circular. This style marking requires day protection using aviation (orange/white) paint and night protection using L-864 flashing red beacon (2,000 cd) and the L-810 flashing red side-light (32 cd) (A1 Systems Only).

Style A Obstruction Lighting

Red Only

L-864

Low Intensity

Day - Off | Night - Red

Designed to meet FAA Style A obstruction lighting requirements per Chapter 5 of the AC 70/7460-1L Advisory Circular. This style marking requires day protection using (pure white/light gray) paint and night protection using L-864 flashing red beacon (2,000 cd).



Style E Obstruction Lighting

Dual

L-865 | L-864 | L-810(f)

Medium Intensity

Day - White   Night - Red

Designed to meet FAA Style E obstruction lighting requirements per Chapter 8 of the AC 70/7460-1L Advisory Circular. This style marking requires day protection using L-865 white beacon (20,000 cd) and night protection using L-864 flashing red beacon (2,000 cd) and the L-810 (F) flashing red side-light (32 cd) for E1 systems only.

Style D Obstruction Lighting

White

L-865

Medium Intensity

Day - White | Night - White

Designed to meet FAA Style D obstruction lighting requirements per Chapter 6 of the AC 70/7460-1L Advisory Circular. This style marking requires day protection using L-865 white beacon (20,000 cd) and night protection using L-864 flashing white beacon (2,000 cd).

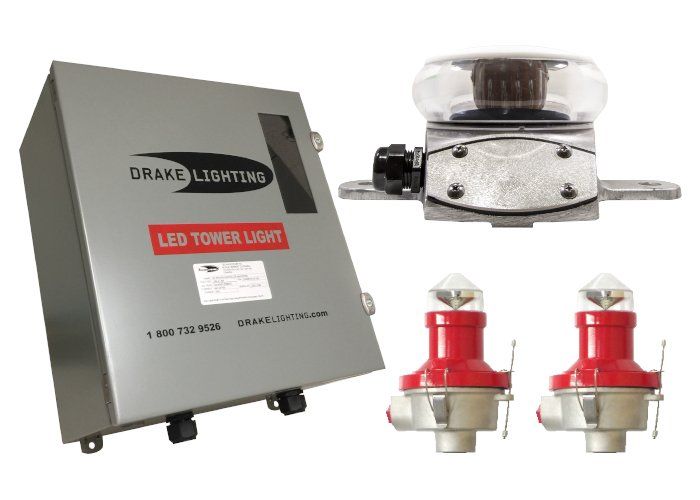

FAA Style A

L-864 | Red Only

Low Intensity

Off - Day | Red - Night

  • One cable - two-conductor wire to each Beacon, Marker, and Photocell
  • Simplest retrofit product on the market
  • High powered LEDs for MAX life
  • Controller and power supply are located at ground level
  • Includes FAA required monitoring
  • Premium monitoring option available
  • Cellular based monitoring option available
  • 5-year parts warranty
  • FAA certified products
  • Optical design to reduce ground disturbance
  • Reduced energy by 90% over conventional lighting
  • GPS compatible
  • Standard 13-1/4" bolt circle installation

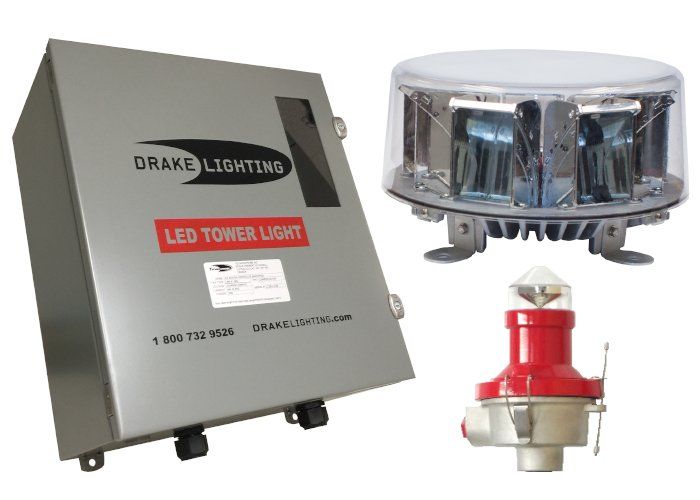

FAA Style E

L-865 | L-864 | L-810

Medium Intensity - DUAL

White - Day | Red - Night

  • One cable - two-conductor wire to each Beacon, Marker, and Photocell
  • Simplest retrofit product on the market
  • High powered LEDs for MAX life
  • Controller and power supply are located at ground level
  • Includes FAA required monitoring
  • Premium monitoring option available
  • Cellular based monitoring option available
  • 5-year parts warranty
  • FAA certified products
  • Optical design to reduce ground disturbance
  • Reduced energy by 90% over conventional lighting
  • GPS compatible
  • Standard 13-1/4" bolt circle installation

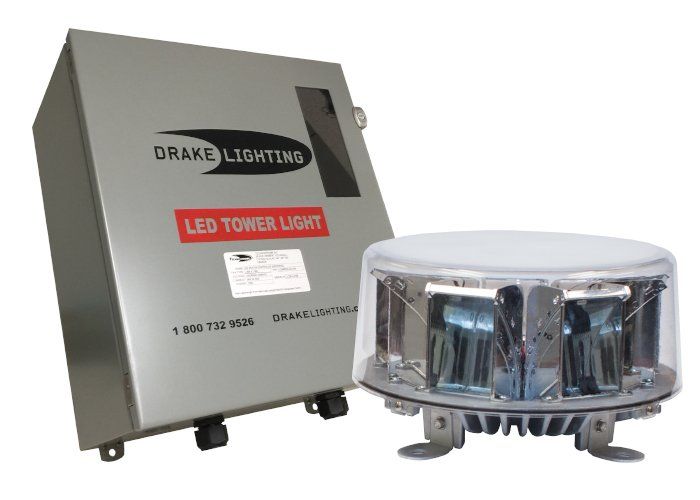

FAA Sytle D

L-865 | L-864 (White)

Medium Intensity

White - Day | White - Night

  • One cable - two-conductor wire to each Beacon, Marker, and Photocell
  • Simplest retrofit product on the market
  • High powered LEDs for MAX life
  • Controller and power supply are located at ground level
  • Includes FAA required monitoring
  • Premium monitoring option available
  • Cellular based monitoring option available
  • 5-year parts warranty
  • FAA certified products
  • Optical design to reduce ground disturbance
  • Reduced energy by 90% over conventional lighting
  • GPS compatible
  • Standard 13-1/4" bolt circle installation
