FAA Style A (Red)

Red Medium Intensity

OBSTRUCTION LIGHTING

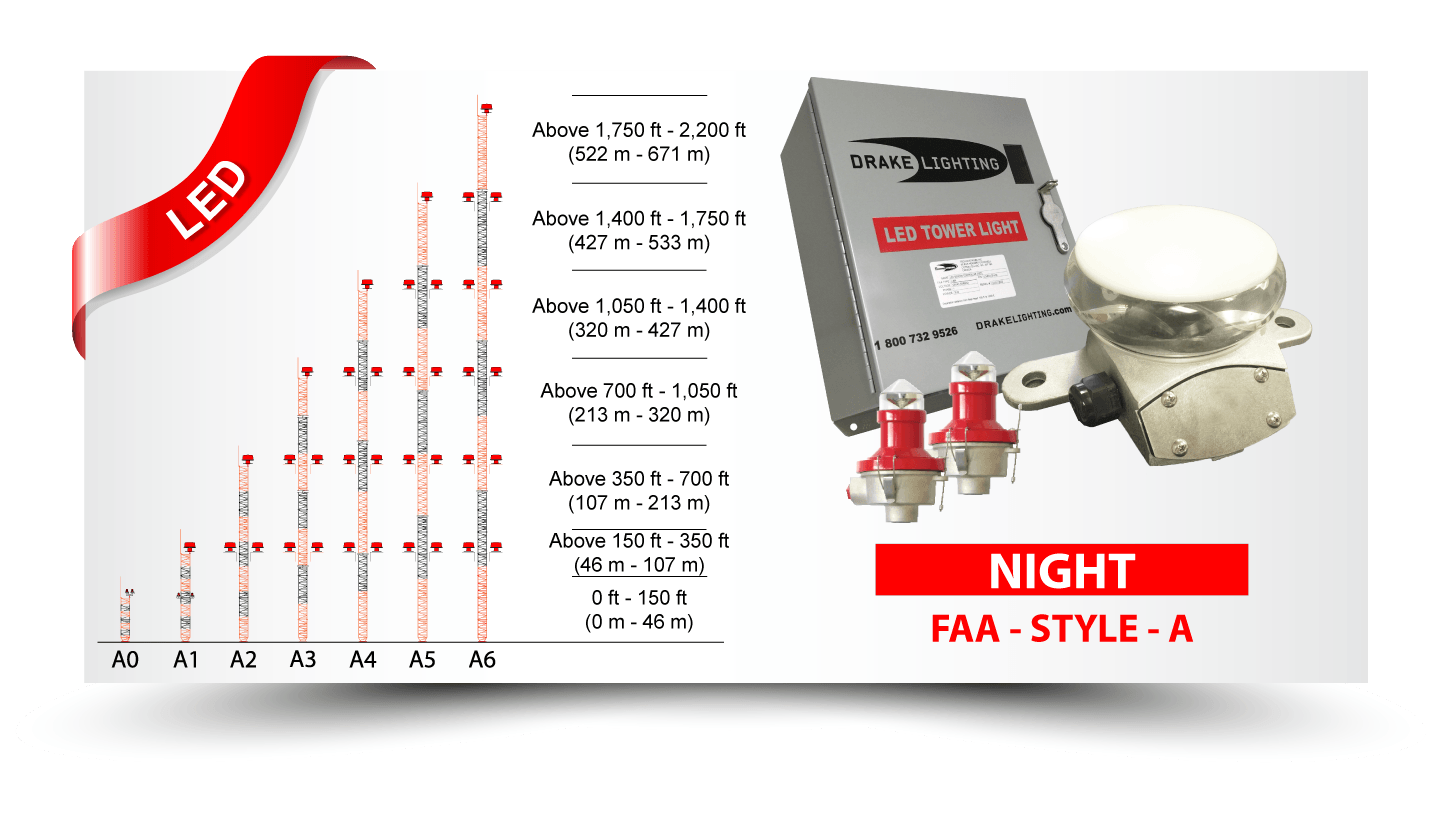

FAA STYLE A
(L-864 | L-810)

The FAA Certified Style A Medium Intensity Obstruction Lighting System is designed for towers 200 feet AGL (Above Ground Level), that does not require light during the day. Programmed to turn on at twilight detection and flash red throughout the night, this system is dependable and long-lasting. The L-864 Lighting System will cover the FAA Advisory Circular and the updates made to it throughout the years. With no active components on the tower, the power supply is located at ground level. This makes it significantly easier to have your lighting system serviced. This unit uses 2,000 candelas at night, making power consumption less than 40 watts.

Features:

  • One Cable - two-conductor wire to each beacon, marker and photocell
  • Simplest retrofit product on the market
  • High powered LEDs for MAX life
  • Controller and power supply are located at ground level
  • Includes FAA required monitoring
  • Premium monitoring option available
  • Cellular based monitoring option available
  • 5-year part warranty
  • FAA certified products
  • Optical design to reduce ground disturbance
  • Reduced energy by 90% over conventional lighting
  • GPS compatible
  • Standard 13-1/4" bolt circle installation
Data Sheet Download
SpeciFications
Light Output:
Lamp Type LED
Light Color Off - Day | Red - Night
Effective Intensity 2,000 cd (Night) +/- 25%
Electrical Value:
Power Consumption 20W
Power Requirements 120/240 VAC 50/60Hz
Mechanical Value:
PS Weight 15 lbs.
PS Dimensions 12.19" x 14" x 6.68"
FH Weight 7 lbs.
FH Dimensions 6.7" Dia. x 5"
Others:
FAA Type L-864
Transport Canada Type CL-864
Operating Temperature -40F to 131F
Warranty 5 Years
