FAA Style F (Dual) AOL

FAA Style F

High Intensity OBSTRUCTION LIGHTING

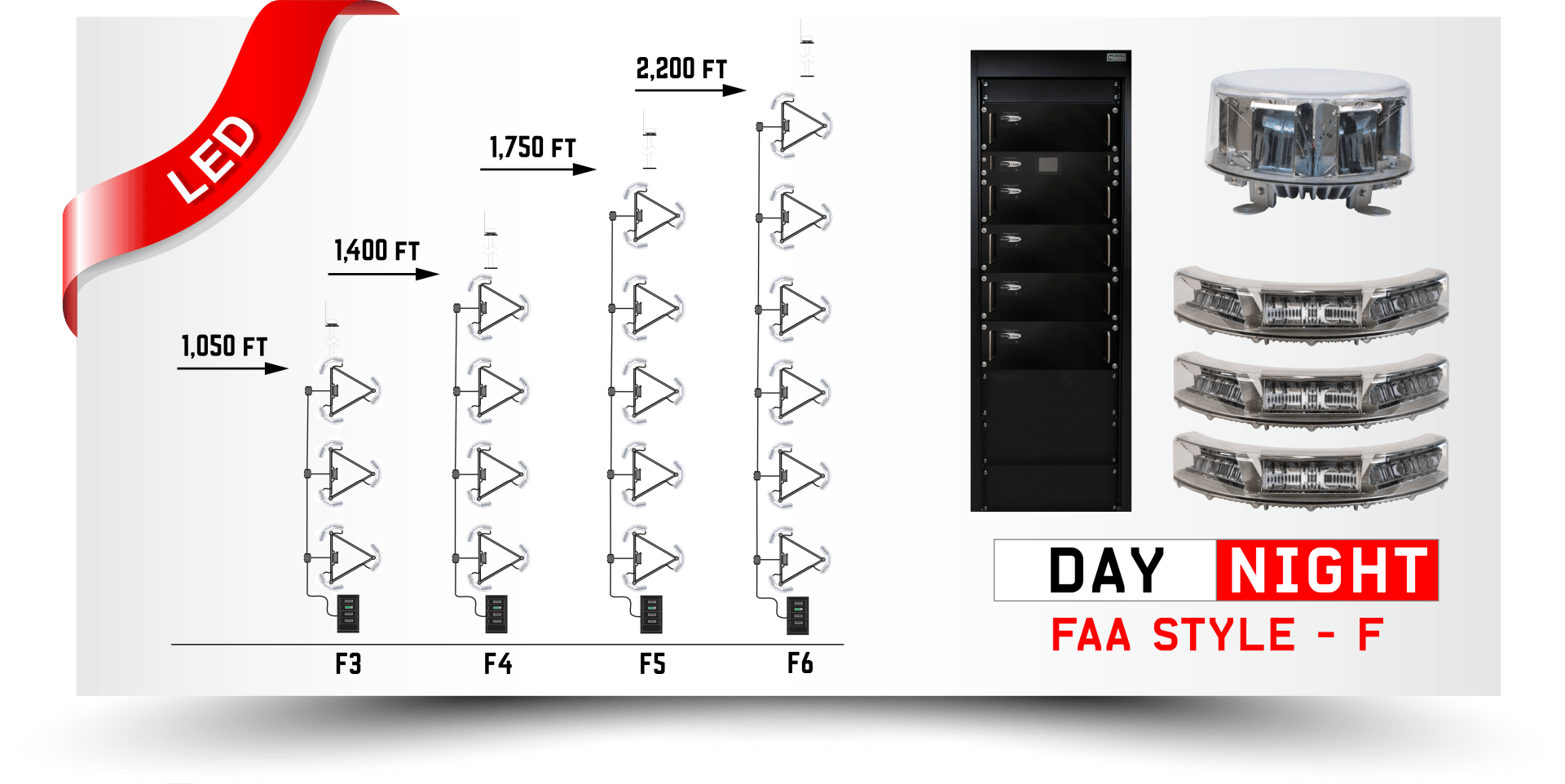

The FAA Style F High Intensity Obstruction Lighting System flashes white during the day and red during the night. The L-865, L-864, and L-856 lighting system includes the top beacon for AOL towers that reach over 700 feet AGL. The flash head has a built-in ice shield, making it ideal to outlast most weather conditions. The C shape of the lights produce 360-degree coverage to light the entire circumference of the tower. The entire unit consumes less than 135 watts per flash head.

FAA STYLE F

(L-856 | L-865 | L-864)

High Intensity Obstruction Lighting System In Jacksonville Florida

FEATURES:

  • Power Supply and Control Mechanisms located at ground level (no height restrictions)
  • Serviceable at point of light (only two components on the tower)
  • Metal clad cable for reliable and quick installations
  • Includes FAA required monitoring
  • Premium monitoring
  • 5-year parts warranty
  • FAA certified products
  • Optical design to reduce ground disturbance
  • Only two conductors to each flash head
  • Simple lightweight mounting connection to tower
SpeciFications
Light Output:
Lamp Type LED
Light Color White-Day | Red-Night
Effective Intensity 270,000cd (Day)
20,000cd (Twilight)
2,000 cd (Night) +/- 25%
Horizontal Coverage 120º
Vertical Beam 3º
Electrical Value:
Power Consumption 280 Watts
Power Requirements 240 VAC 50/60 Hz
Mechanical Value:
PS Weight 44lbs.
Rack Dimensions 23"x 87" x 31 ½"
FH Weight 55lbs.
FH Dimensions 34" x 16
Others:
FAA Type L-856 | L-865 | L-864
Transport Canada Type CL-856 | CL-865 | CL-864
Operating Temperature -40ºF to 131ºF
Warranty 5 years
