FAA Style C (White Only) AOL

FAA Style C

High Intensity OBSTRUCTION LIGHTING

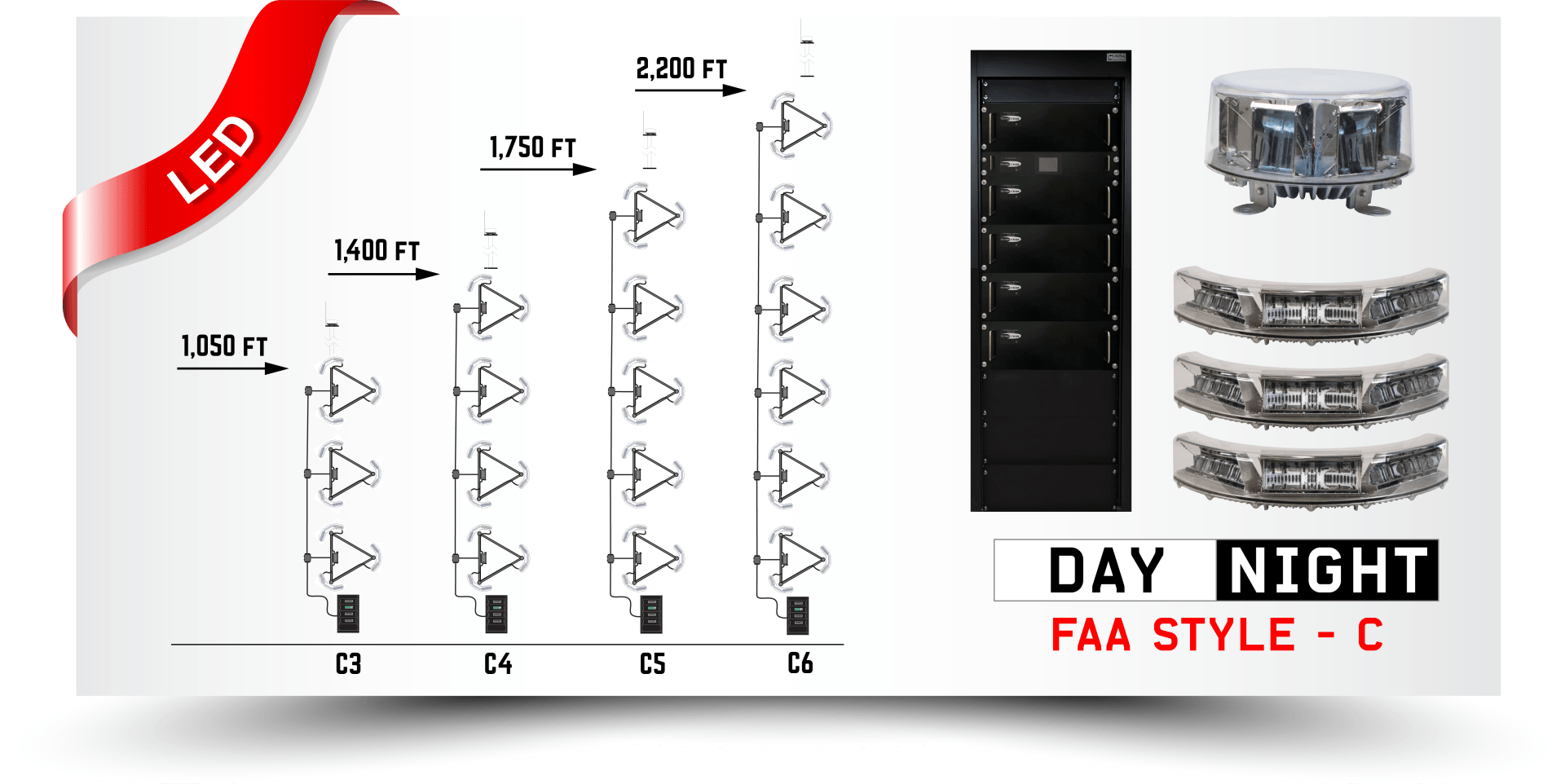

The FAA Style C High Intensity Obstruction Lighting System includes the top beacon for towers that include an antenna. This style is meant for towers that are above 700 feet AGL and have an antenna projecting from the top of the tower. The C shaped structures create a 360-degree flash, to cover the entire circumference of the tower. The L-856 and L-865 light flashes white only during the day at 270,000 candelas, 20,000 candelas at twilight, and 2,000 candelas at nighttime.

FAA Style C

(L-856 | L-865)

FEATURES:

  • Power Supply and Control Mechanisms located at ground level (no height restrictions)
  • Serviceable at point of light (only two components on the tower)
  • Metal clad cable for reliable and quick installations
  • Includes FAA required monitoring
  • Premium monitoring
  • 5-year parts warranty
  • FAA certified products
  • Optical design to reduce ground disturbance
  • Only two conductors to each flash head
  • Simple lightweight mounting connection to tower
SpeciFications
Light Output:
Lamp Type LED
Light Color White-Day | White-Night
Effective Intensity 270,000cd (Day)
20,000cd (Twilight)
2,000 cd (Night) +/- 25%
Horizontal Coverage 120º
Vertical Beam 3º
Electrical Value:
Power Consumption 280 Watts
Power Requirements 240 VAC 50/60 Hz
Mechanical Value:
PS Weight 44lbs.
Rack Dimensions 23"x 87" x 31 ½"
FH Weight 55lbs.
FH Dimensions 34" x 16
Others:
FAA Type L-856 | L-865
Transport Canada Type CL-856 | CL-865
Operating Temperature -40ºF to 131ºF
Warranty 5 years
