FAA Style E (Dual)

Dual Medium Intensity

OBSTRUCTION LIGHTING

FAA Style E

(L-865 | L-864)

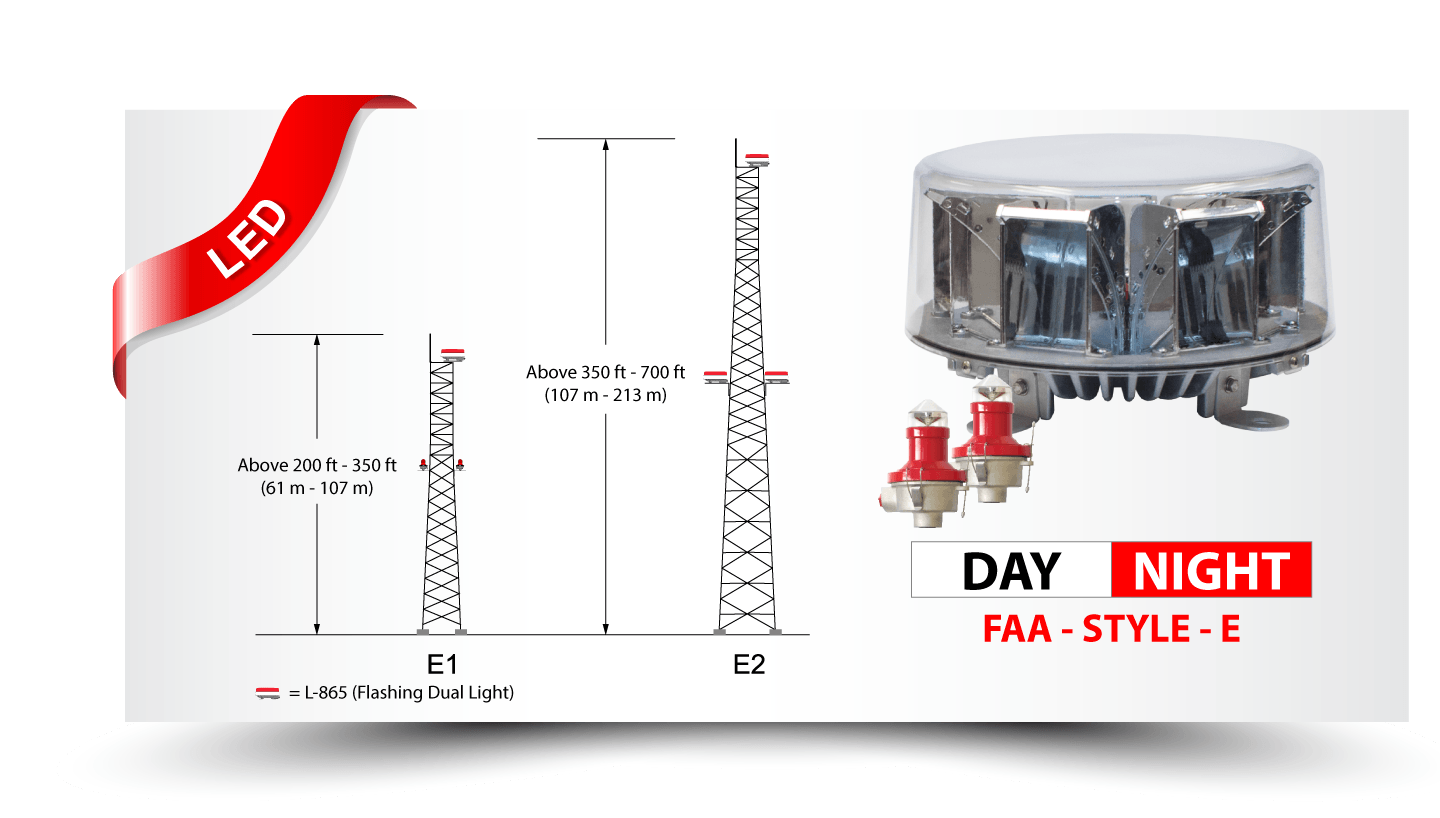

The FAA Certified Style E Dual Medium Intensity Obstruction Lighting System is meant for towers and the like that are 200 feet and over. The Dual Lighting System flashes white during the day and red at night. This design comes with a beacon, power supply, and side marker, weighing in at 25 lbs. The controller and power supply are located at ground level, with just one cable running up the tower to the beacon, marker, and photocell. With this design, most repairs can be done without requiring a tower climbing crew. High powered LEDs extend the lights lifespan and reduce energy needs by up to 90%. The L-865 and L-864 lamp type produces 20,000 candelas during the day, and 2,000 candelas at night.

Features:

  • One Cable - two-conductor wire to each beacon, marker and photocell
  • Simplest retrofit product on the market
  • High powered LEDs for MAX life
  • Controller and power supply are located at ground level
  • Includes FAA required monitoring
  • Premium monitoring option available
  • Cellular based monitoring option available
  • 5-year part warranty
  • FAA certified products
  • Optical design to reduce ground disturbance
  • Reduced energy by 90% over conventional lighting
  • GPS compatible
  • Standard 13-1/4" bolt circle installation
Data Sheet Download
SpeciFications
Light Output:
Lamp Type LED
Light Color White - Day | Red - Night
Effective Intensity 20,000 cd (day)
2,000 cd (night) +/- 25%
Electrical Value:
Power Consumption 60W Day/ 20W Night
Power Requirements 120/240 VAC 50/60Hz
Mechanical Value:
PS Weight 25 lbs.
PS Dimensions 15.8" x 17" x 8.46"
FH Weight 24 lbs.
FH Dimensions 19" Dia. x 14.25"
Others:
FAA Type L-865 | L-864
Transport Canada Type CL-865 | CL-864
Operating Temperature -40F to 131F
Warranty 5 Years
