Solar Obstruction Lighting

Solar
OBSTRUCTION LIGHTING

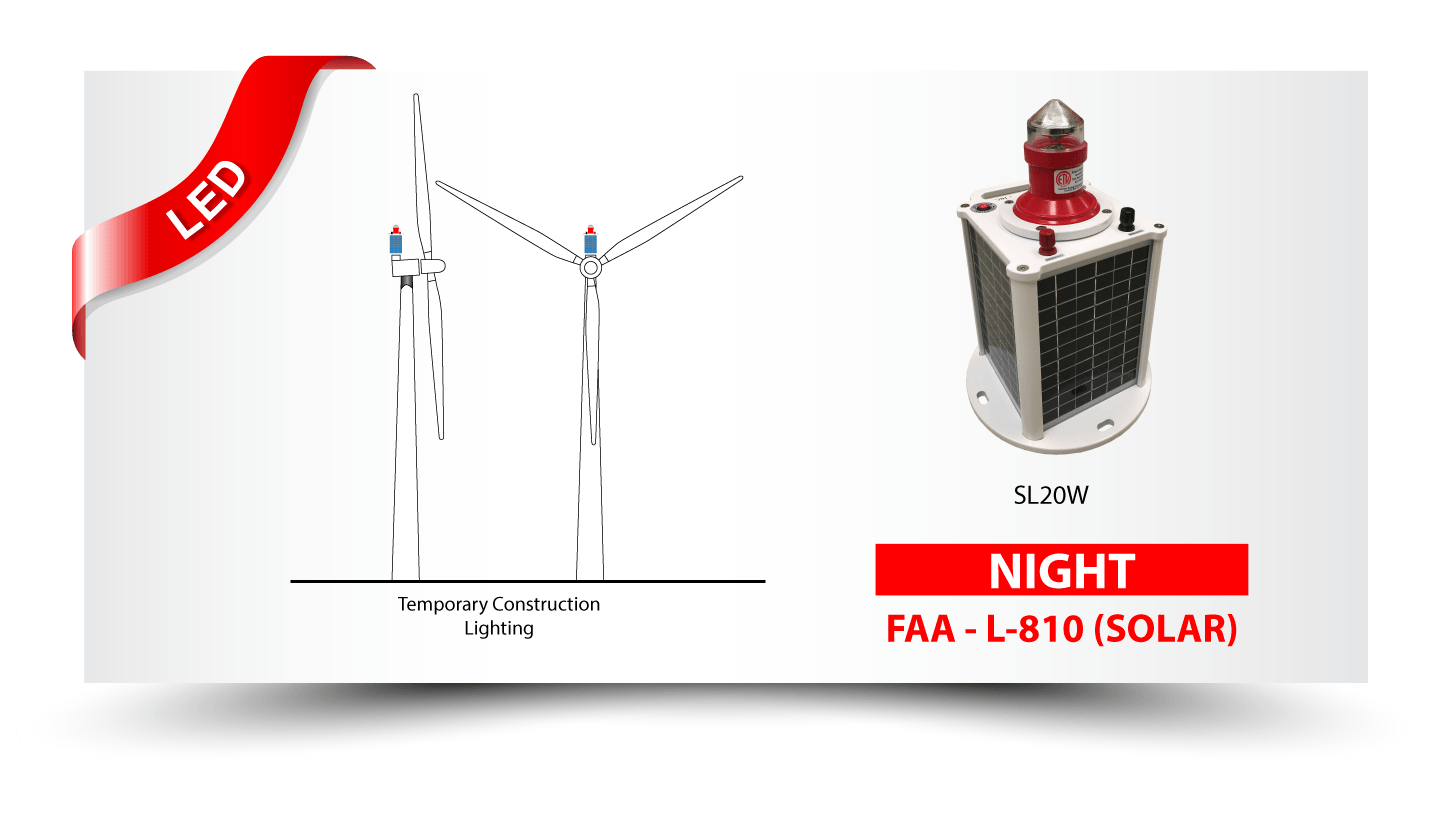

Per section 13.8 of FAA AC 70/7460-1L: a steady-burning red L-810 is required during construction if the permanent flashing L-864 is not in place. If power is not available, structures should be lit with a self-contained, solar-powered, steady burning red LED light meeting the photometric requirements of an FAA L-810.

FAA Style A0

(L-810)

Features:

  • L-810 Fixture is Certified
  • Self-contained without outside power supply
  • Photocell is integrated in light unit
  • 1 Year Warranty
  • External charging post (12V standard DC battery charger)
  • On-Off switch for storage
  • Flash/Steady burning switch
  • Handle integrated for easy handling
  • Optical design to reduce ground disturbance
  • Fits standard 13-¼" bolt circle installation
Data Sheet Download
SpeciFications
Light Output:
Lamp Type LED
Light Color White - Day | Red - Night
Effective Intensity 20,000 cd (day)
2,000 cd (night) +/- 25%
Electrical Value:
Power Consumption 60W Day/ 20W Night
Power Requirements 120/240 VAC 50/60Hz
Mechanical Value:
PS Weight 25 lbs.
PS Dimensions 15.8" x 17" x 8.46"
FH Weight 24 lbs.
FH Dimensions 19" Dia. x 14.25"
Others:
FAA Type L-865 | L-864
Transport Canada Type CL-865 | CL-864
Operating Temperature -40F to 131F
Warranty 5 Years
