When you put any sort of electronics in mother nature for an extended period of time, then it truly is inevitably that something is bound to fail. These parts have been meticulously sourced and tested for quality and durability, giving you better parts and maximum life of your obstruction lighting system.

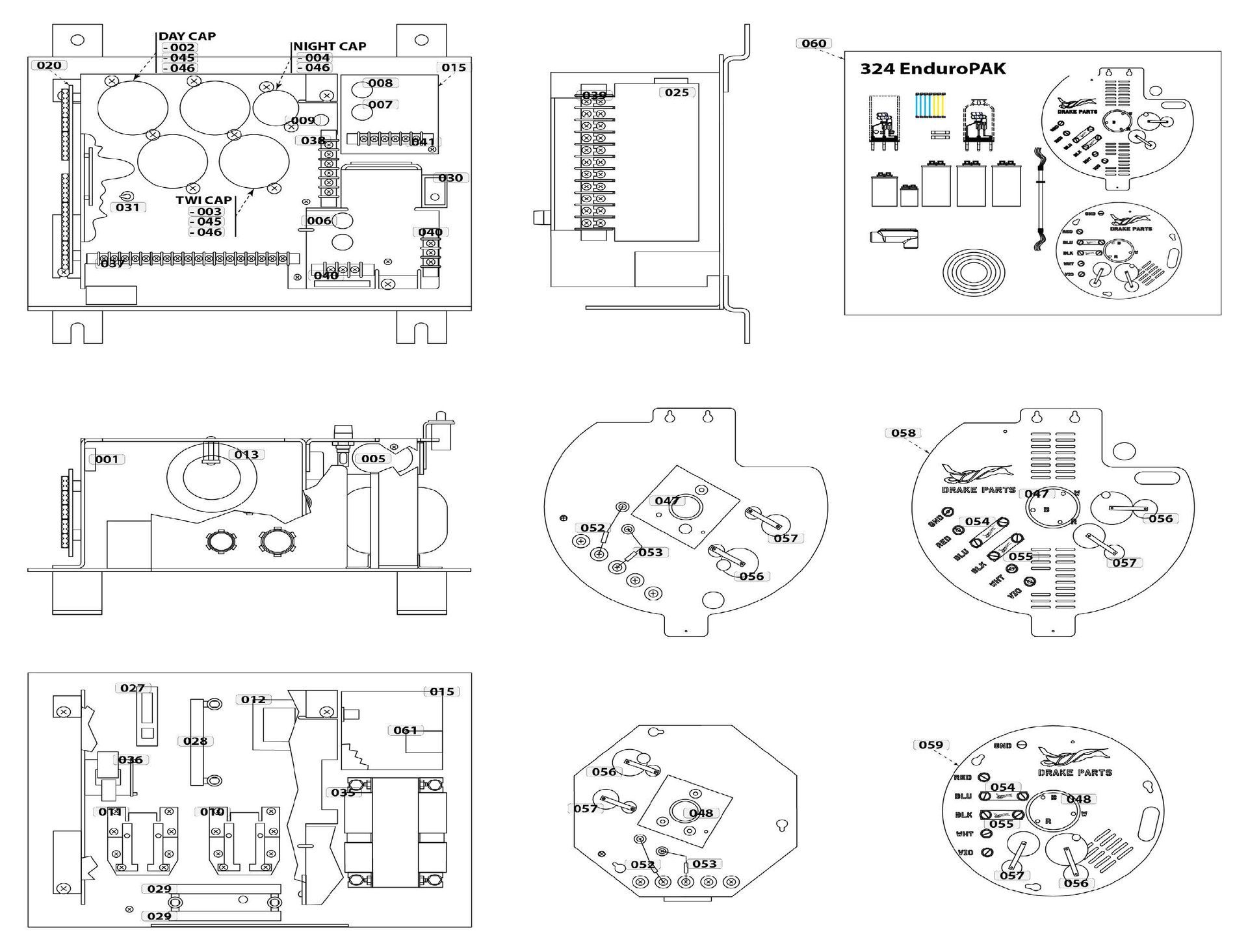

| Drawing Reference | Manual Reference | Description | OEM # | ITL # | Drake # | Price |
|---|---|---|---|---|---|---|
| 1 | BR1 | Diode Bridge | 6902806 | DIO-BRGE-123 | DP-900060 | $30.00 |
| 2 | C2A, C, D | Capacitor, 70 mfd. | 6720401 | CAP-0070-1KV | DP-900006 | $35.00 |
| 3 | C2B | Capacitor, 40 mfd. | 6386503 | CAP-0040-1KV | DP-900007 | $30.00 |
| 4 | C3 | Capacitor, 1 mfd. | 6848202 | CAP-0001-1KV | DP-900008 | $22.00 |
| 5 | C4 | Capacitor, 3 mfd. | 6577903 | CAP-0003-1KV | DP-900017 | $35.00 |
| 6 | F1, F2 | Fuse, Power, MDL8 | 4901931 | FUS-008A-3AG | DP-900011 | $8.00 |
| 7 | F4 | Fuse, Marker, MDL5 | 4900345 | FUS-005A-3AG | DP-900012 | $8.00 |
| 8 | F5, F6 | Fuse, MDL1 | 4900337 | FUS-001A-3AG | DP-900028 | $8.00 |
| 9 | HV | Neon, High Voltage Light | 4902317 | LMP-NEON-312 | ||
| 10 | K2 | 24V Relay, Mode | 8900494 | RLY-FTMR-024 | DP-900029 | $92.50 |
| 11 | K3 | 120V Relay, Discharge | 8900493 | RLY-FTMR-120 | DP-900030 | $91.50 |
| 12 | L1 | Choke, Burst | 4850601 | IND-BCHK-312 | DP-900031 | $48.00 |
| 13 | L2 | Choke, Flash | 4175200 | IND-CHOK-301 | DP-900032 | $115.00 |
| 14 | LS1 | Phone Line Surge Protector | 2865301 | ITL-8653-001 | ||
| 15 | M1 | *Red Light Module | 1811502 | - | ||
| - | MOV | Varistor, 120V | 6901079 | SUP-120V-000 | DP-900026 | $16.00 |
| 20 | PCB1 | *Timing and Trigger Board — PC 324 (non-“E” models) | 2474019 | ITL-4740-000 | ||
| 20 | PCB1 | *Timing and Trigger Board — PC 324E — Two Markers | 2474719 | ITL-4740-000 | ||
| 20 | PCB1 | *Timing and Trigger Board — PC 324E — Three Markers | 2474749 | ITL-4740-000 | ||
| 25 | PCB2 | HV Rectifier Board | 2458005 | ITL-4580-000 | DP-900034 | $185.00 |
| 27 | PCB4 | Sense Module | 2811101 | ITL-8111-000 | ||
| 28 | R1 | Resistor, Discharge, 35K 50W | 6900541 | RES-035K-050 | DP-900035 | $15.00 |
| 29 | R2A & B | Resistor, Burst (two 500-ohm resistors) | 6900532 | RES-0500-050 | DP-900036 | $13.50 |
| 30 | S1 | Switch, Interlock | 4901220 | SW0-ASSY-INT | DP-900037 | $9.50 |
| 31 | S2 | Switch, Toggle | 8799201 | |||
| 35 | T1 | Transformer, Power, 60 Hz | 8841201 | XFR-PWR0-312 | ||
| 36 | T3 | Transformer, Coupling | 8336701 | XFR-FLSH-CPL | DP-900019 | $70.00 |
| 37 | TB1 | Terminal Strip, 18 position | 4901930 | - | DP-900020 | $52.00 |
| 38 | TB2, TB7 | Terminal Strip, 6 position | 4902257 | - | DP-900024 | $38.00 |
THE ENDUROPAK
BETTER PARTS.
MAX LIFE.
We are changing the way you buy and use parts for Obstruction Lighting.
The EnduroPak
The EnduroPak was designed to give field technicians ALL of the parts and tools they need to complete ANY obstruction light repair or maintenance task. Contact us today for more information and specific applications.
BETTER PARTS
Engineered for easier handling & installation on site! Our convenient 1 box solution gives you everything you need to upgrade your existing Xenon system.
MAX LIFE
We source parts that won't fail within the first year and will outlast OEM parts making your legacy system better than it was from the manufacturer!
PREMIUM SUPPORT
Our team ready to answer your questions and support you through the entire process! Whether it's buying or technical support.
