FAA Style A (Red-Wind)

RED MEDIUM INTENSITY

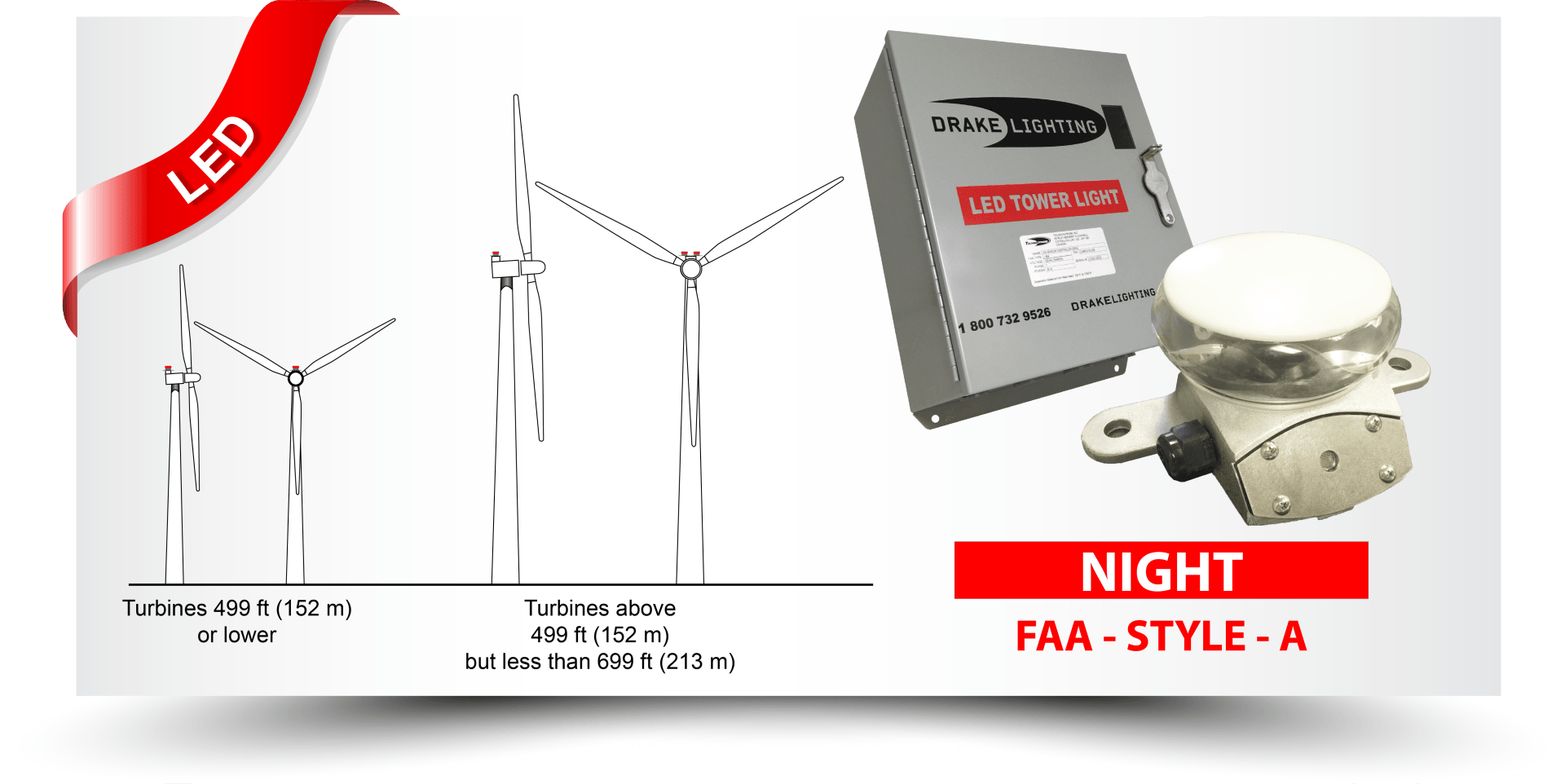

FAA OBSTRUCTION LIGHTING SYSTEM FOR WIND

FAA STYLE A
(L-864 | L-810)

The FAA Certified Style A Wind Medium Intensity Obstruction Lighting System is the simplest design on the market for Wind Farms. Each Wind Turbine must light up simultaneously with each other. Our strobe light flashes red perfectly in sync with the others. The L-864 beacon has a universal application, so it can mimic any other light system's flash rate and duration with little to no programming. The unit itself flashes red at night, using 2,000 candelas and less than 10 watts.

Features:

  • Simplest retrofit product on the market with delay features allowing beacon to work with any existing farm lighting system
  • LIDS - Light Intensity Dimming Solution compatible
  • Simple four wire installation
  • Controlled and Power Supply is separate from flash head
  • Includes FAA required monitoring
  • Premium monitoring option available
  • Cellular based monitoring option available
  • 5-year parts warranty
  • FAA certified products
  • Optical design to reduce ground disturbance
  • Reduced energy consumption by 90% over conventional lighting
  • GPS compatible
  • Standard 13-1/4" bolt circle installation
  • ADLS - Aircraft Detection Lighting System Interface
Data Sheet Download
SpeciFications
Light Output:
Lamp Type LED
Light Color Off - Day | Red - Night
Effective Intensity 2,000 cd (Night) +/- 25%
Horizontal Coverage 360
Vertical Beam 3
Electrical Value:
Power Consumption 20W
Power Requirements 120/240 VAC 50/60 Hz
Mechanical Value:
PS Weight 15lbs.
PS Dimensions 12.19"x14"X6.68"
FH Weight 7lbs.
FH Dimensions 6.7" Dia. x 5"
Others:
FAA L-864
Transport Canada Type CL-864
Operating Temperature -40F to 131F
Warranty 5 years
